| 브랜드 이름: | Xingweihan |
| 모델 번호: | d (n) b---100, d (n) b--160, d (n) b--200, d (n) b--250 |
| MOQ: | 1 |
| 가격: | USD10000-USD12000 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 50 세트/월 |

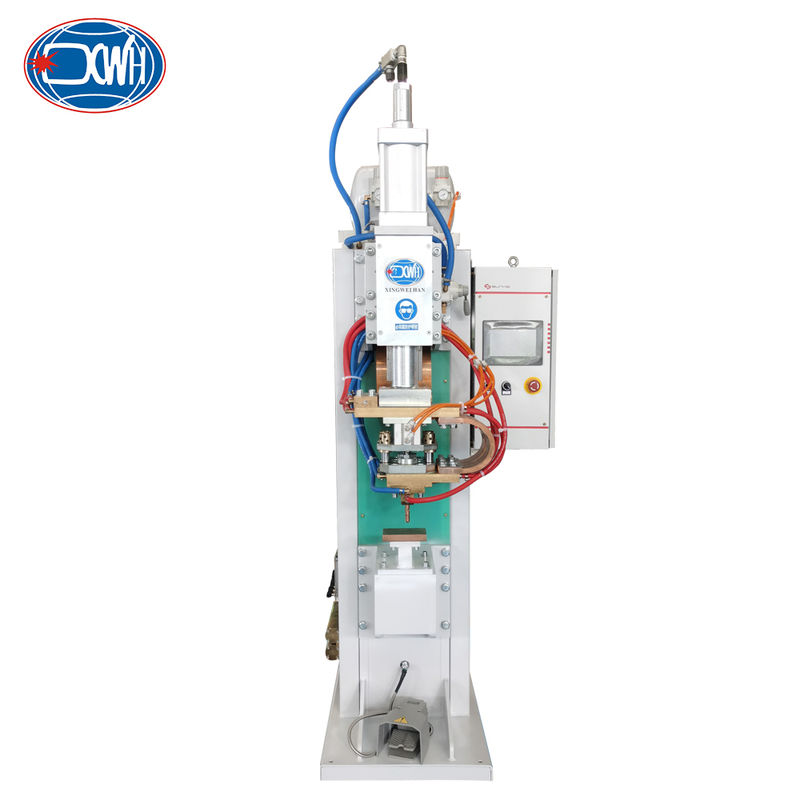

We understand that the core of production is to reduce costs and increase efficiency, and this customized dual head spot welding machine is a perfect embodiment of this concept. It has no redundant complex functions, and all designs revolve around practicality, reliability, and fast cost recovery.
The dual head fixed structure avoids expensive robotic arms or moving mechanisms, achieving ultimate cost control while achieving production efficiency equivalent to two devices. Pneumatic pressurization provides stable and powerful operation. The optimized circuit design results in lower energy consumption.
For galvanized pipe welding challenges, we've pre-set mature process parameters verified through extensive experiments. Operators require minimal training, reducing reliance on senior technicians and labor costs. Its compact, durable design makes it ideal for small and medium-sized enterprises looking to enhance competitiveness.
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
|---|---|---|---|---|
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
