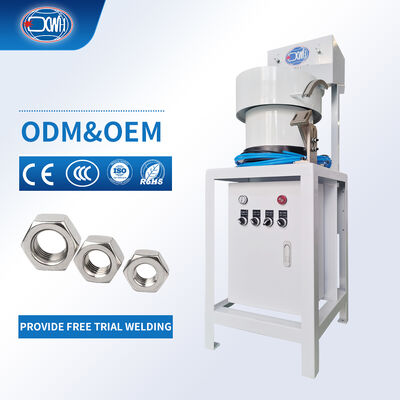

Packing Screws Nuts Bolts And Hardware Vibratory Bowl Screw Lock Nut Feeder Machine
Product Introduction:
A high-performance nut conveyor is a combination of multiple technologies. It covers: ① Mechanical technology (vibration disc track design, wear-resistant materials); ② Sensing technology (fiber optic sensors used to detect the presence and position of nuts); ③ Pneumatic technology (precise control of blowing action by solenoid valve); ④ Control technology (PLC or embedded system processes signals and issues instructions). The technical barriers mainly lie in the high-precision design and debugging of the vibration disk track, as well as the stability and reliability of the entire system under high-speed operation.
Features:
1. The conveying efficiency is extremely high: the system is driven by compressed air and can deliver nuts to the target station through a specially designed pipeline with lightning speed and precision, with the entire process taking only milliseconds. This feature perfectly fits the high cycle production line, greatly reducing assembly time and improving overall production capacity.
2. Streamlined System Structure: Primarily composed of two core modules—vibration tray sorting and high-pressure air blowing—this design significantly reduces mechanical moving parts. Thanks to this minimalist approach, the system demonstrates enhanced reliability and a notably lower failure rate. Daily maintenance is also highly simplified, with the key focus being on maintaining clean air supply and ensuring unobstructed conveying tracks.
3.Excellent cost-effectiveness investment: It is almost one of the lowest initial purchase and long-term maintenance costs options, while achieving the same level of automated conveying functionality. Especially suitable for enterprises that hope to quickly obtain automation returns with limited budgets, you can leverage significant efficiency improvements with minimal investment and quickly recoup your investment.
4. Flexible installation and strong adaptability: The conveying pipeline can be flexibly arranged according to the actual space between the equipment and the workstation, cleverly avoiding obstacles and accurately delivering nuts to narrow or special angle workstations that are difficult for the robotic arm to reach.
Technical Parameters:
|
Power Supply
|
AC220V, 50Hz / 60Hz; Max 250 - 400VA
|
|
Nut Shapes
|
Square, round. Hexagon, T, dome, with cover, with rib, collar etc.
|
|
Air Pressure
|
0.25 - 0.4MPa
|
|
Sizes
|
M4 - M12, 7/16
|
|
Bowl Size
|
φ260mm, φ350mm
|
|
Hopper Capacity
|
9L (10,000 pcs for M6 nut)
|
|
Supply Capacity
|
40 - 60pcs/min
|
|
Supply Chute Length
|
2m
|
|
Angle
|
0° - 90°
|
|
Weight
|
50kg
|
General Structures:

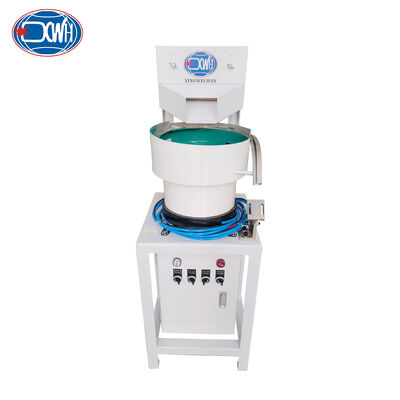

Detailed Images:
Transportation Pipeline: It is usually a flexible hose made of polyurethane or nylon material, with quick couplings at both ends. As an exclusive track connecting the host and the workstation. After the separated individual nuts enter the pipeline, they will be pushed by compressed air (blowing type) or mechanical mechanism (pushing type) that opens instantly, flying at high speed inside the pipeline and reaching the feeding nozzle at the end. Its flexibility ensures that it can bend freely with the robotic arm or moving mechanism.
Control System: The control core of the device (usually a programmable logic controller (PLC) or embedded microprocessor) plays the role of the "central nervous system". It is responsible for receiving instructions from various sensors and the main control system, and accurately outputting control signals based on them to manage the start and stop of the vibration disk, the speed of the direct oscillator, the action rhythm of the separation mechanism, and the opening and closing of the pneumatic valve. At the same time, the core also has basic fault diagnosis capabilities, which can judge abnormal conditions such as material shortage, blockage, and delivery timeout, and trigger corresponding sound and light alarms.

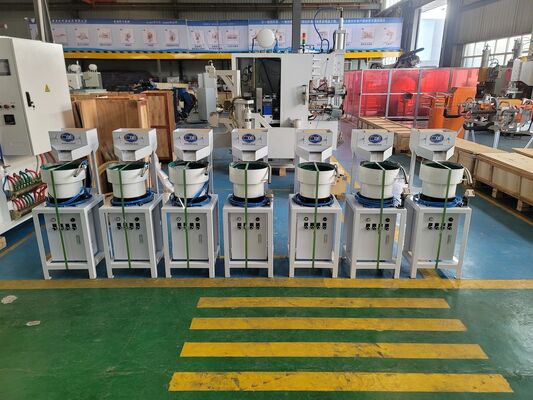

Scene Images:
Application:
Supporting Point Projection Welding Machines:
